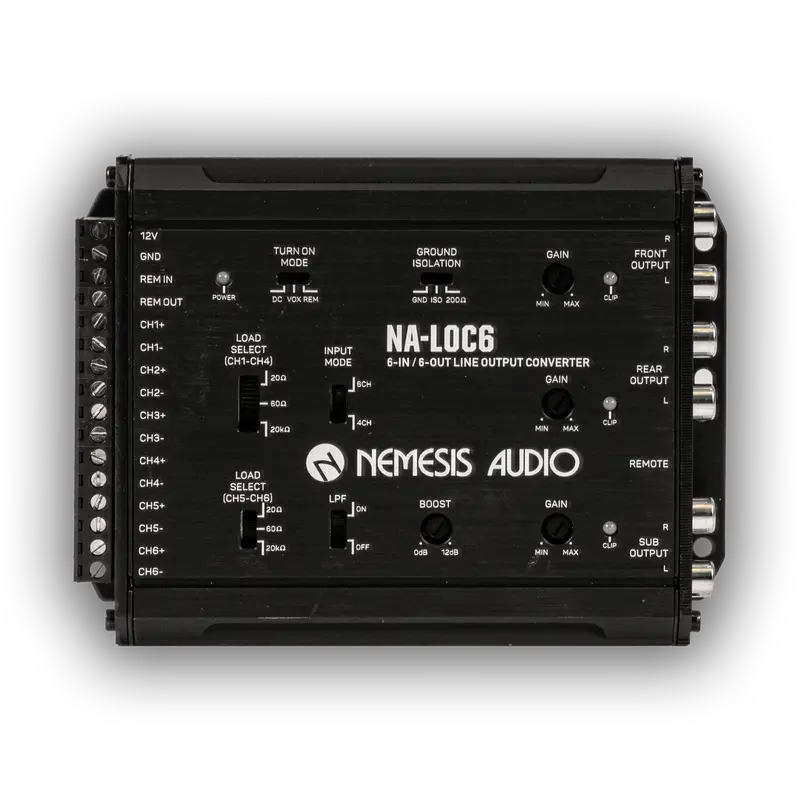

Nemesis Audio NA-LOC6 Six-Channel Line Output Converter

Description

Specifications:

• Active line output converter and line driver
• 6-channels of speaker-level inputs handle up to 40V
• 6-channels of RCA outputs provide up to 9.5 Volts of output
• Designed to work with factory audio systems
• Auto turn-on via DC offset or Audio Detection
• Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
• Adjustable 0 – 12dB Bass Boost (Fixed at 45 Hz)
• Selectable full range or low pass filter switch (LPF Sub-chan-nel only): 250Hz
• Input selector switch for 4 or 6 channel modes
• 12 Volt turn-on output for aftermarket amplifiers
• Selectable Ground Isolation switch to eliminate ground and alternator noise
• Molex terminals for speaker signal and power
• Wired remote bass level control included
• LED Clip indicator
• Total Harmonic Distortion: 0.01%
• Signal to Noise: >110dB
• Frequency Response: 10-20,000 Hz
