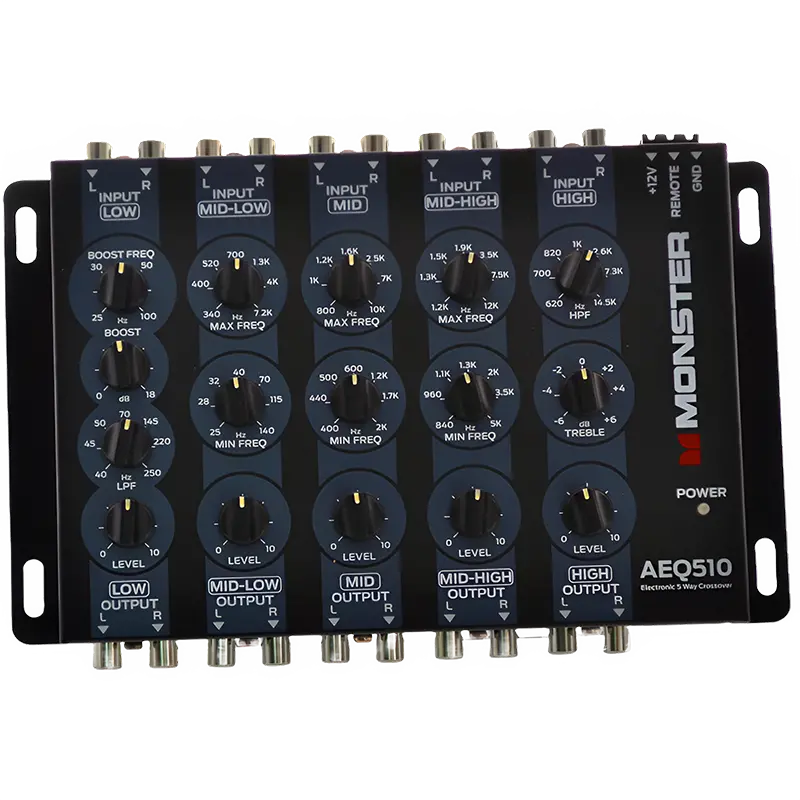

Monster AEQ510 5-Band Electronic Crossover with Line Driver

Description

• Number of Ways: 5
• Low Way (Mono):
• Cutoff frequency (LPF): Variable of 40Hz to 250Hz(-12dB/oct)
• Bass Boost: Frequency Central Variable of 25Hz to 100Hz(0db – 18dB)
• MID LOW WAY (Stereo)
• Minimum Frequency (Count HPF): Variable of 25Hz to 140Hz(-12dB/oct)
• Maximum Frequency (Count LPF): Variable of 300Hz to 7.5KHz(-12dB/oct)
• MID WAYS (Stereo)
• Minimum Frequency (Count HPF): Variable of 400Hz to 2hKHz(-12dB/oct)
• Maximum Frequency (Count LPF): Variable of 800Hz to 10KHz(-12dB/oct)
• MID HIGH WAY (Stereo)
• Cutoff frequency: Variable of 550Hz to 13.7KHz (-12dB/oct)
• Harmonic distortion (THD): <0.01 to 1KHz
• Input Impedance: 20k Ohms
• Output Impedance: 470 Ohms
• Maximum Input Level: 8V RMS
• Maximum Output Level: 8V RMS
• Crosstalk (Channel separation): >80dB
• Pow
• er supply: With DC-DC converter Switch

  minal consumption: 240mA

• er supply: 10 to 15.5 VDC
• NoProtection: Against Polarity Inversion
• PwDimensions (WxHxD): 207 x 40 x 148mm (8.15″ x 1.57″ x 5.82″)
  • Weight: 0.66 Kg (1.46 lb)
