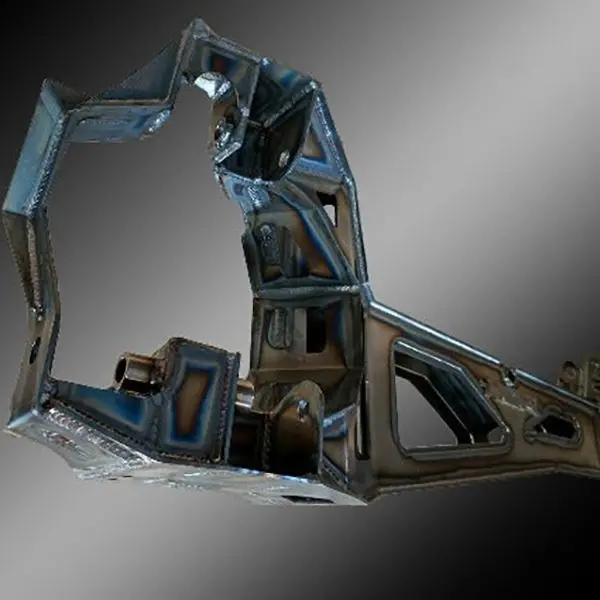

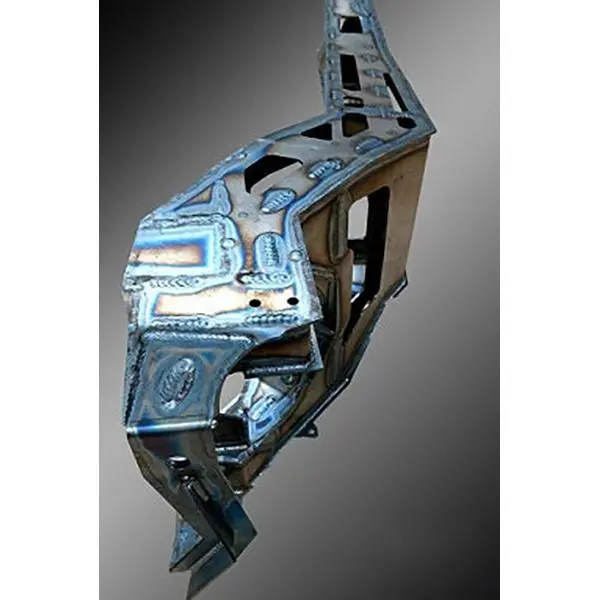

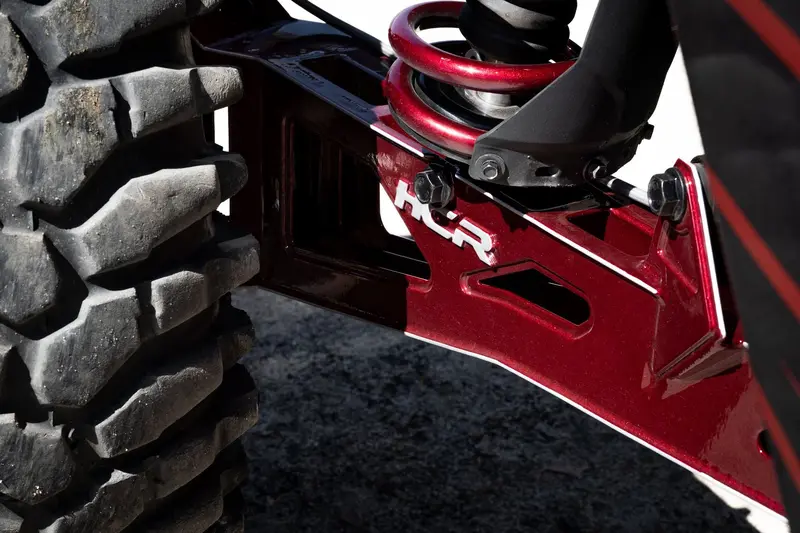

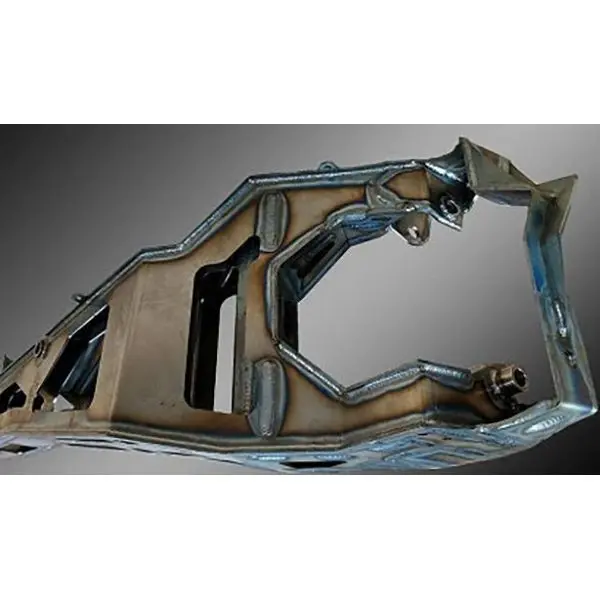

HCR Racing Dune-Oriented Rear Trailing Arms for Can-Am Maverick X3 72″

Description

HCR kits are made to order. Quality takes time.

PART# MAV-05600-2

Features:

• Designed to keep weight down while adding necessary strength

• Provides a unique look that only HCR offers

• Retains the factory width of 72″ with no added travel

• Increased ground clearance with improved approach angles

• Solid slate bottom surface to prevent getting caught on trail obstacles

HCR Suspension’s Can-Am Maverick X3 Elite Trailing arms were designed to keep weight down, add necessary strength and providing the unique look that only HCR provides. These replacement trailing arms are retaining the factory width of 72″ and do not add any travel, however they do provide greater ground clearance by improved approach angles and a solid slate bottom surface to ensure you won’t get caught up on anything on the trail.

The Shock Brackets You Need

Strong suspension deserves strong brackets. Our Smart Shock Brackets are made from durable HCR Steel, easy to install, and ultra-strong for improved performance.

Smart Shock Brackets—Rear Kit

• Optimize the angle and positioning of shocks

• Easy bolt on, no cut, no drill installation

• Made of HCR Steel

• Made in the USA

Kit Includes:

• (2) Trailing arms

• (2) shock brackets

• Brake line hardware

Fitment:

• Can-Am Maverick X3 RS Turbo R : 2021

• Can-Am Maverick X3 RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 X MR Turbo R : 2018-2019

• Can-Am Maverick X3 X MR Turbo RR : 2020-2021

• Can-Am Maverick X3 X MR Turbo RR 72 : 2022+

• Can-Am Maverick X3 X RC Turbo R : 2018-2020

• Can-Am Maverick X3 X RC Turbo RR : 2020-2021

• Can-Am Maverick X3 X RC Turbo RR 72 : 2022+

• Can-Am Maverick X3 X RS Turbo R : 2017-2020

• Can-Am Maverick X3 X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 X RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022+

• Can-Am Maverick X3 MAX RS Turbo R : 2021

• Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021

• Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX X RS Turbo : 2017-2020

• Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020

• Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022+

Note:

• 2021 Smart shock Models will need an additional bracket

• 14″ WHEELS WILL NOT FIT

• Does not come with trailing arm radial bearings (Replace with Can-Am OEM hardware)

• HCR kits are made to order. Quality takes time
