Description

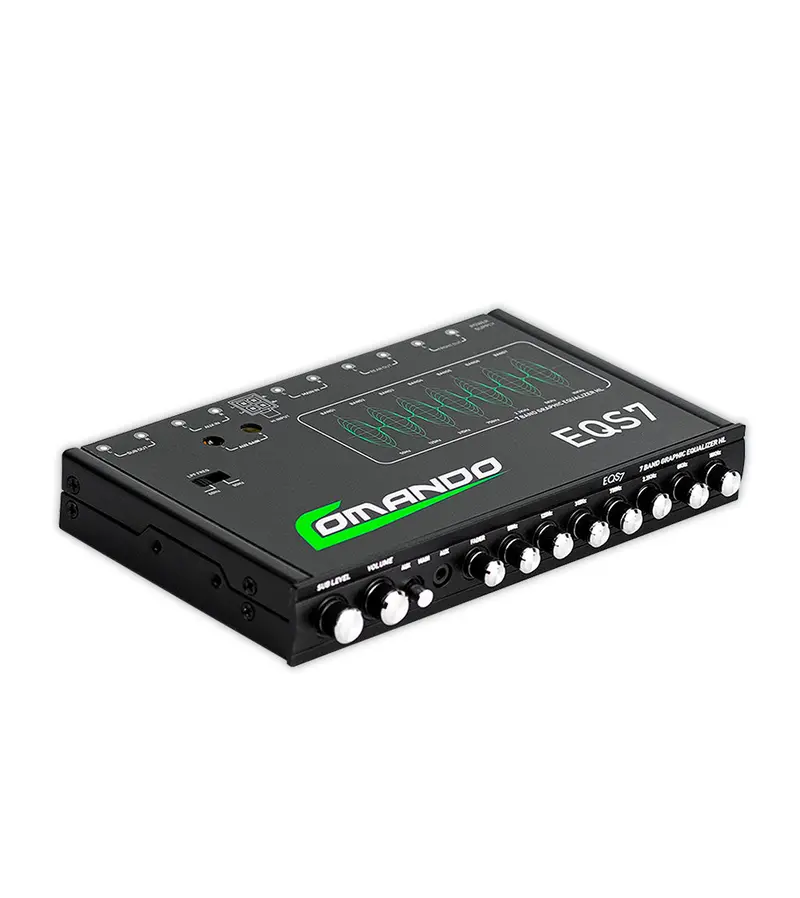

The Comando EQS7 is a 7-band stereo equalizer / crossover specifically created for the mobile environment. The EQS7 provides poweerful features in a compact size:
• Seven equalization bands (50Hz, 125Hz, 750Hz, 2.2KHz, 6KHz and 16KHz), each frequency adjustable from -12 to +12 dB (-15 to +15 dB for subwoofer frequencies).
• Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 60Hz or 90Hz.• Three stereo RCA outputs to drive front, rear and subwoofer audio amplifiers. • An auxiliary stereo RCA input for use with portable devices , such as an MP3 player or DVD player.
• Separate controls for master volume, subwoofer volume (sub level), front/rear fader and selection of main or auxiliary inputs. • Extended frequency response from 20Hz to 30KHz with exceptional 100dB signal-to-noise perfomance. • Gold-plated RCA connectors to ensure the best audio signal output. • ISO mounting holes and removable trim ring for custom installation.
Technical Data
|
Graphic center frequencies |
50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 16KHz |
|
Boost / cut |
12dB |
|
S / N ratio |
100dB |
|
Frequency response |
10Hz-50KHz +/- 1 dB |
|
Maximum output voltage |
7V |
|
T.H.D |
0.005% |
|
Input sensitivity |
50mV – 3V |
|
Head room |
20dB |
|
Input impedance |
20K ohms |
|
Output impedance |
2K ohms |
|
Stereo separation |
82dB/1KHz |
|
Operating voltage |
11V-15V Negative Ground |
|
Size |
7” Wide by 4 1/8” Deep by 1” High |
