Description

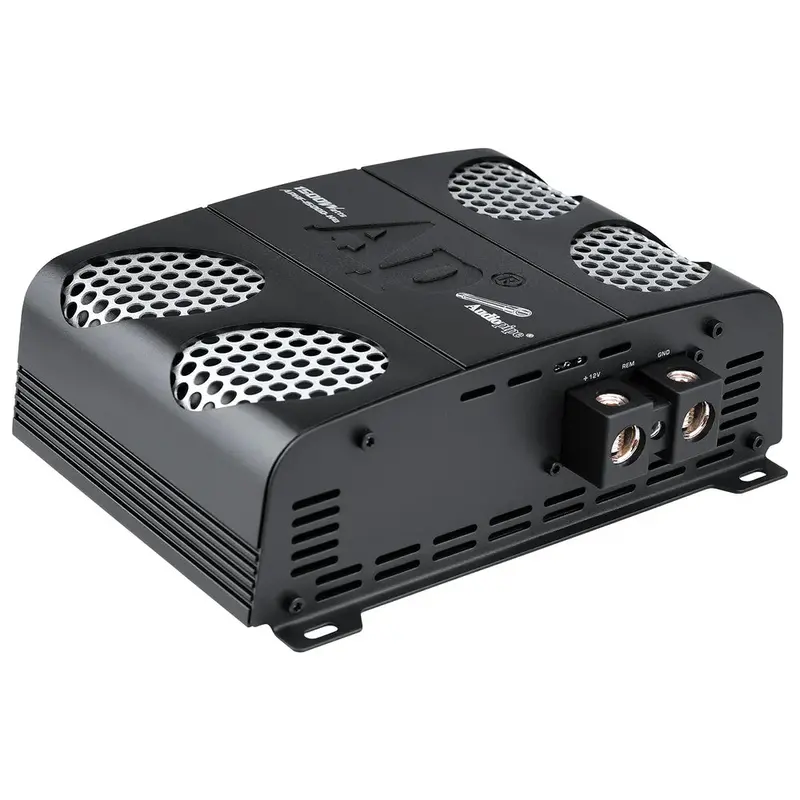

- FULL RANGE CLASS D MOSFET AMPLIFIER: Our Full Range Amplifier utilizes advanced pulse-width modulation (PWM) techniques to efficiently deliver power to your speakers, resulting in clearer, louder sound
- DESIGNED WITH ADVANCED MOSFET CIRCUITRY: Our Full Range Class D Mono Amplifier incorporates a specially designed circuitry that combines dual internal amplifiers in BTL mode to deliver high output power in-cased in a small footprint heatsink without sacrificing sound quality or performance
- MAXIMUM POWER OUTPUT: As a result of its ability to deliver more power to the load than a single-ended amplifier, this amplifier ensures efficient power output and superior performance up to 1500 Watts
- UNMATCHED PERFORMANCE: Our amplifiers are the premier choice for “Brazilian Style” amplification with a track record of proven performance, ensuring an exceptional car audio experience
- FREQUENCY RESPONSE -3dB: 10Hz-20KHz
- CONTINUOUS POWER OUTPUT @ 1% 1KHz: 14.4V
MONO @ 4 Ohm: 1 x 970 WATTS (76A)
MONO @ 2 Ohm: 1 x 1600 WATTS (134A) - SIGNAL TO NOISE RATIO: ≥85dB
- INPUT SENSITIVITY: 0.25 – 4V
- OVERLOAD PROTECTION: This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience.
- OVERHEAT PROTECTION: This amplifier features an advanced heatsink, designed to provide superior overheat protection.
- OVER-VOLTAGE PROTECTION: 16V
- UNDER-VOLTAGE PROTECTION: 9.5V
- REMOTE SUBWOOFER VOLUME CONTROL: This amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator. Easily control your audio sound level and monitor your amplifier’s performance.
- HIGH PASS: 10Hz-80Hz 12dB/Octave
- LOW PASS: 80Hz-20KHz 12dB/Octave
- BASS BOOST: 0-12 dB @ 35Hz-90Hz
- DIMENSIONS (L x W x H): 5.9″ x 9″ x 2.9″( 150 x 229 x 73 mm )
